COMBINATION FLANGES

PRODUCT RANGE

/
Busbar Rating(Amps) Conductor Size Minimum size in mm Standard size in mm Maximum size in mm Title
X Y X Y X Y Y

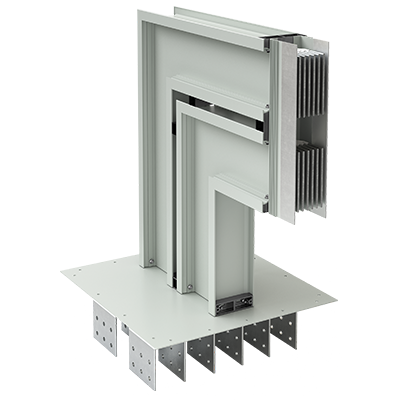

5000A 3 X 200 X 6 mm 650 500 700 700 700 700 Aluminium Flatwise Elbow Flange Dimensions
800A 1 X 60 X 6 mm 300 175 350 350 700 700 Aluminium Flatwise Elbow Flange Dimensions
1000A 1 X 80 X 6 mm 300 175 350 350 700 700 Aluminium Flatwise Elbow Flange Dimensions
1250A 1 X 110 X 6 mm 325 175 350 350 700 700 Aluminium Flatwise Elbow Flange Dimensions
1400A 1 X 150 X 6 mm 325 200 350 350 700 700 Aluminium Flatwise Elbow Flange Dimensions
1600A 1 X 200 X 6 mm 350 225 350 350 700 700 Aluminium Flatwise Elbow Flange Dimensions
2000A 2 X 125 X 6 mm 350 225 350 350 700 700 Aluminium Flatwise Elbow Flange Dimensions
2500A 2 X 150 X 6 mm 450 300 500 500 700 700 Aluminium Flatwise Elbow Flange Dimensions
3200A 2 X 200 X 6 mm 500 350 500 500 700 700 Aluminium Flatwise Elbow Flange Dimensions
4000A 3 X 200 X 6 mm 650 500 700 700 700 700 Aluminium Flatwise Elbow Flange Dimensions
/
Busbar Rating(Amps) Conductor Size Minimum size in mm Standard size in mm Maximum size in mm Title
X Y X Y X Y Y

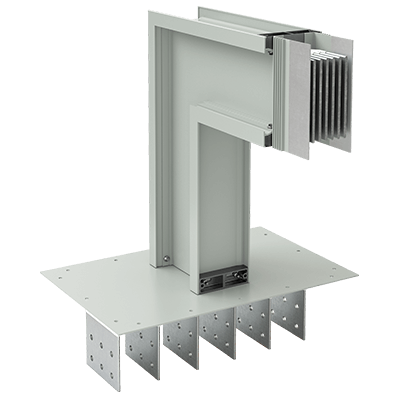

800A 1 X 50 X 6 mm 275 175 350 350 700 700 Copper Flatwise Elbow Flange Dimensions(Guardex)
1000A 1 X 60 X 6 mm 300 175 350 350 700 700 Copper Flatwise Elbow Flange Dimensions(Guardex)
1250A 1 X 70 X 6 mm 300 175 350 350 700 700 Copper Flatwise Elbow Flange Dimensions(Guardex)
1400A 1 X 80 X 6 mm 300 175 350 350 700 700 Copper Flatwise Elbow Flange Dimensions(Guardex)
1600A 1 X 100 X 6 mm 300 175 350 350 700 700 Copper Flatwise Elbow Flange Dimensions(Guardex)
2000A 1 X 125 X 6 mm 325 175 350 350 700 700 Copper Flatwise Elbow Flange Dimensions(Guardex)
2500A 1 X 200 X 6 mm 350 225 350 350 700 700 Copper Flatwise Elbow Flange Dimensions(Guardex)
3200A 2 X 110 X 6 mm 425 275 500 500 700 700 Copper Flatwise Elbow Flange Dimensions(Guardex)
4000A 2 X 150 X 6 mm 450 325 500 500 700 700 Copper Flatwise Elbow Flange Dimensions(Guardex)
5000A 2 X 200 X 6 mm 500 375 500 500 700 700 Copper Flatwise Elbow Flange Dimensions(Guardex)
6300A 3 X 150 X 6 mm 575 425 600 600 700 700 Copper Flatwise Elbow Flange Dimensions(Guardex)
1400A 1 X 100 X 6 mm 300 175 350 350 700 700 Copper Flatwise Elbow Flange Dimensions(Guardex)
2000A 1 X 150 X 6 mm 325 200 350 350 700 700 Copper Flatwise Elbow Flange Dimensions(Guardex)
2500A 2 X 80 X 6 mm 375 250 500 500 700 700 Copper Flatwise Elbow Flange Dimensions(Guardex)
/
Busbar Rating(Amps) Conductor Size Minimum size in mm Standard size in mm Maximum size in mm Title
X Y X Y X Y Y
800A 1 X 45(P) X 6 mm 275 175 350 350 700 700 Copper Flatwise Elbow Flange Dimensions(Guardex Plus)
1000A 1 X 45 X 6 mm 275 175 350 350 700 700 Copper Flatwise Elbow Flange Dimensions(Guardex Plus)
1250A 1 X 55 X 6 mm 275 175 350 350 700 700 Copper Flatwise Elbow Flange Dimensions(Guardex Plus)
1600A 1 X 80 X 6 mm 300 175 350 350 700 700 Copper Flatwise Elbow Flange Dimensions(Guardex Plus)
2000A 1 X 110 X 6 mm 325 175 350 350 700 700 Copper Flatwise Elbow Flange Dimensions(Guardex Plus)
2500A 1 X 150 X 6 mm 325 200 350 350 700 700 Copper Flatwise Elbow Flange Dimensions(Guardex Plus)
3200A 2 X 150 X 6 mm 450 300 500 500 700 700 Copper Flatwise Elbow Flange Dimensions(Guardex Plus)
4000A 2 X 200 X 6 mm 425 275 500 500 700 700 Copper Flatwise Elbow Flange Dimensions(Guardex Plus)
5000A 2 X 160 X 6 mm 475 325 500 500 700 700 Copper Flatwise Elbow Flange Dimensions(Guardex Plus)
